1. Design / Prototype
2. Create Dictionary Objects
3. Create Interface View (CDS)
4. Business Object Generation (CDS – Object Model Annotations )
5. Generated Business Object
6. BOPF – Development
   • Determination
   • Validation
   • Action
   • Alternative Key
7. Test BOPF Object using BOBT
8. Access Control (CDS)
9. Consumption View (CDS)
10. OData Service Generation and Registration
11. Test OData Service using SAP Gateway Client
12. UI development

OData is an open protocol to allow the creation and consumption of queryable and interoperable RESTful APIs in a simple and standardway.
(Source)
Understand OData in 6 Simple Step
OData – Everything that you need to know

Note: In this scenario, we are not using OData annotation @OData.publish: true because data and model provider class are not generated, directly service is generated which can be registered on the gateway.

Step 1: Go to transaction SEGW (SAP gateway Service Builder) and click on Create. Enter the Project name and description. Select project type as Service with SAP Annotation and Standard strategy. Save to your package or local object.

Step 2: Right click on Data Model and select Reference=>Data Source

Step 3: Enter the CDS View name and click on Next and select the relevant node then click on Finish.

Step 4: Click on Generate Icon and generate artifacts.

• Data provider class
• Model Provider class
• Model Name
• Service name

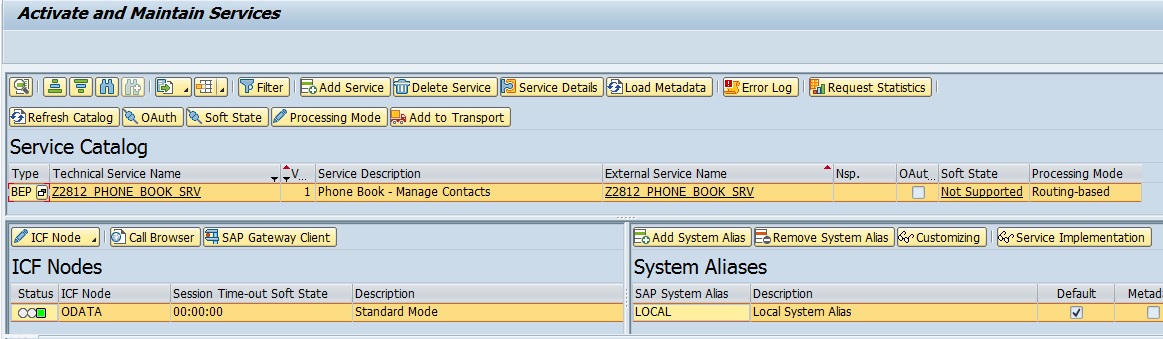

Step 5: Register your service for available gateway in the system. Expand Service maintenance and select a gateway and register.
